Technical Data


Technical data for 1100 Volts pvc Insulated cables as per IS:694

FINECAB 1100 VOLTS SINGLE CORE FR/FRLSH PVC INSULATED
MULTISTRAND COPPER CONDUCTOR CABLES CONFORMING TO IS: 694

NOTE: Sizes 1.0 to 2.5 sq.mm. are with conductor class 2 and 4.0 to 6.0 sq.mm. are with conductor class 5

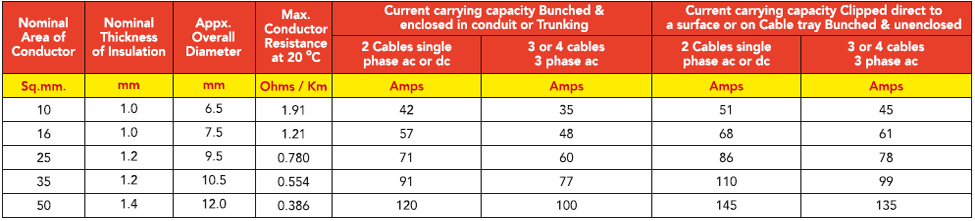

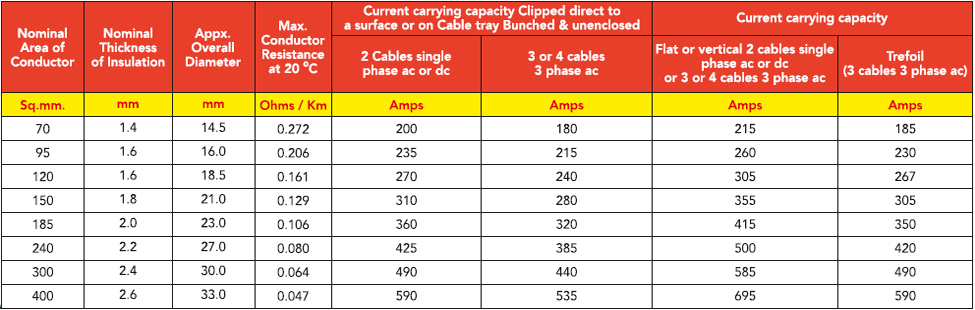

FINECAB 1100 VOLTS SINGLE CORE PVC INSULATED MULTISTRAND
COPPER CONDUCTOR INDUSTRIAL WIRING CABLES CONFORMING TO IS: 694


FINECAB 1100 VOLTS SINGLE CORE PVC INSULATED MULTISTRAND
COPPER CONDUCTOR INDUSTRIAL WIRING CABLES CONFORMING TO IS: 694

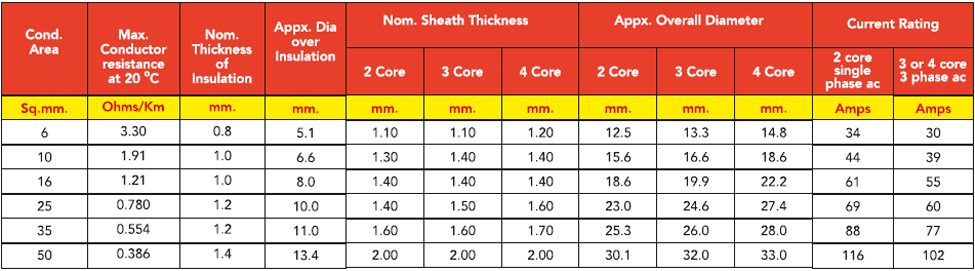

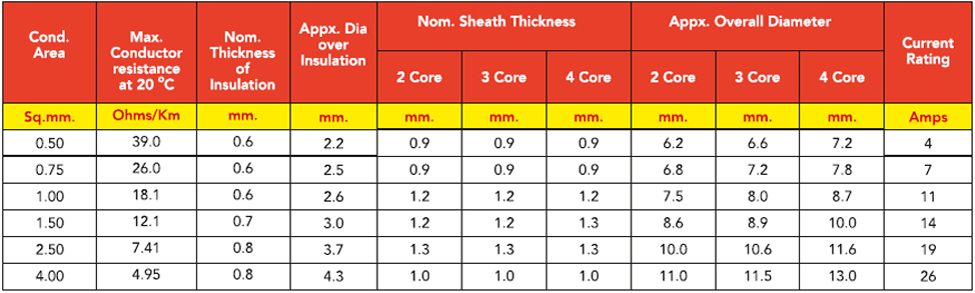

FINECAB 1100 VOLTS ROUND MULTI CORE MULTISTRAND COPPER
CONDUCTOR PVC INSULATED & SHEATHED CABLES CONFORMING TO IS: 694


FINECAB 1100 VOLTS ROUND MULTI CORE MULTISTRAND COPPER
CONDUCTOR PVC INSULATED & SHEATHED CABLES CONFORMING TO IS:694

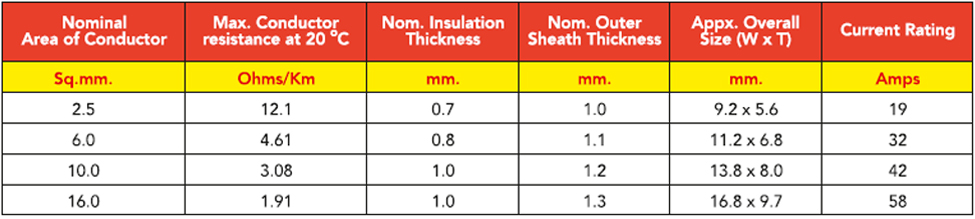

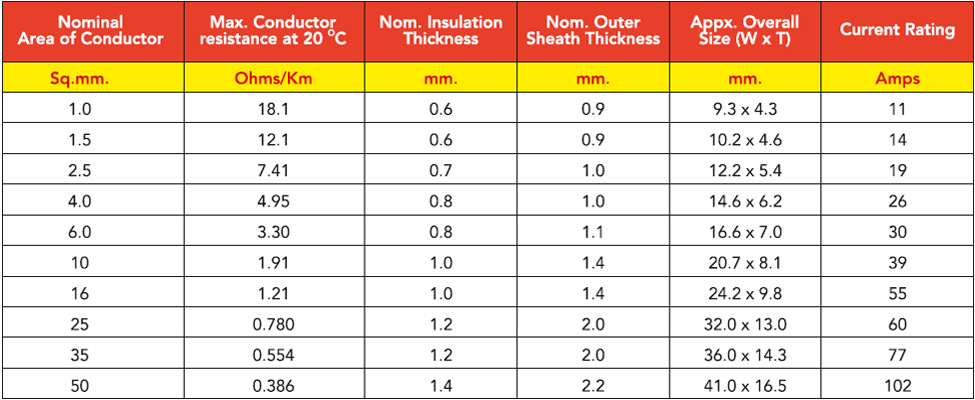

FINECAB 1100 VOLTS TWIN FLAT ALUMINIUM CONDUCTOR PVC
INSULATED & SHEATHED (TWIN CORE) CABLES CONFORMING TO IS: 694


FINECAB 1100 VOLTS THREE CORE FLAT MULTISTRAND COPPER CONDUCTOR
PVC INSULATED & PVC SHEATHED SUBMERSIBLE CABLES CONFORMING TO IS: 694

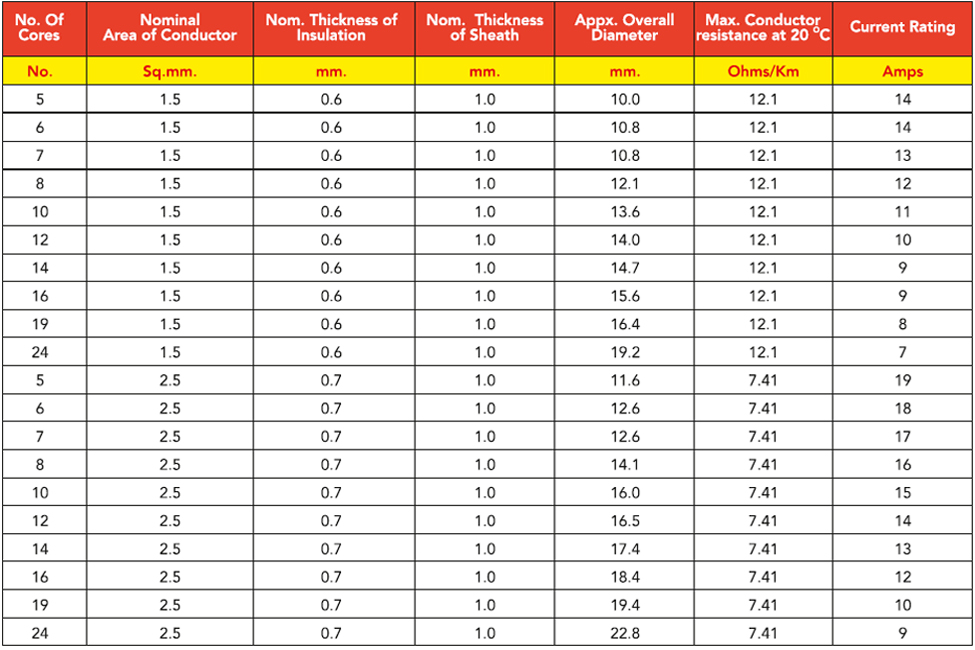

FINECAB 1100 VOLTS MULTI CORE MULTISTRAND COPPER CONDUCTOR
PVC INSULATED & PVC SHEATHED CABLES GENERALLY AS PER IS: 694


Technical data for 1.1 KV Pvc/Pvc Armoured cables as per is:1554(Pt.1)

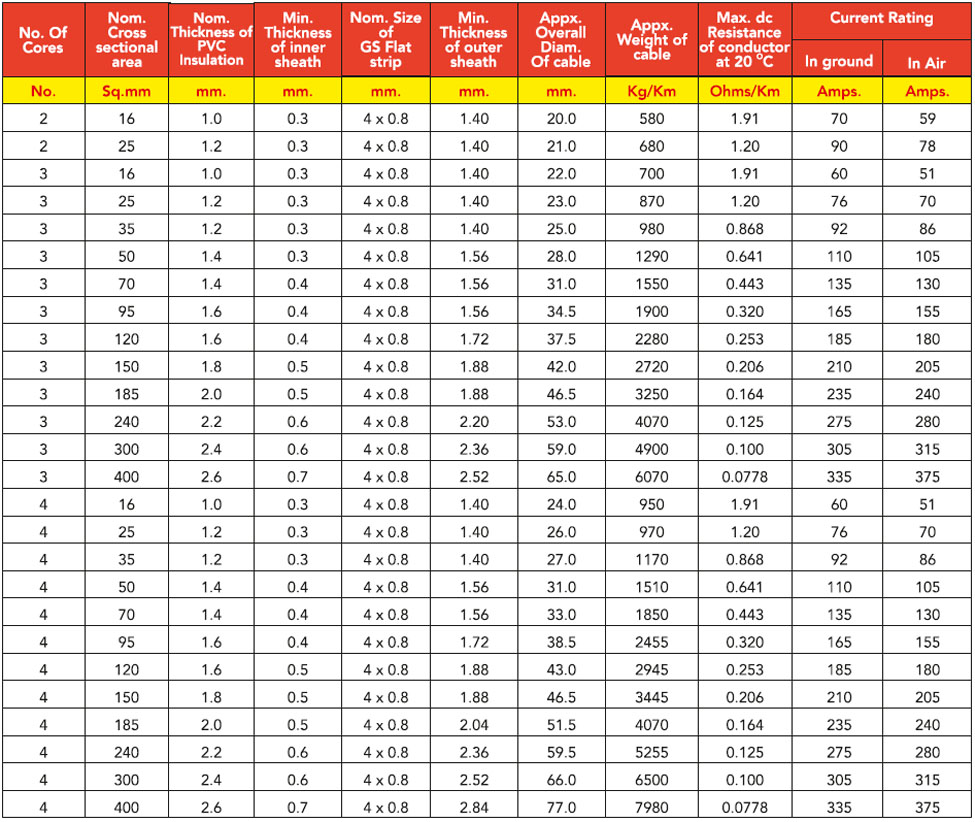

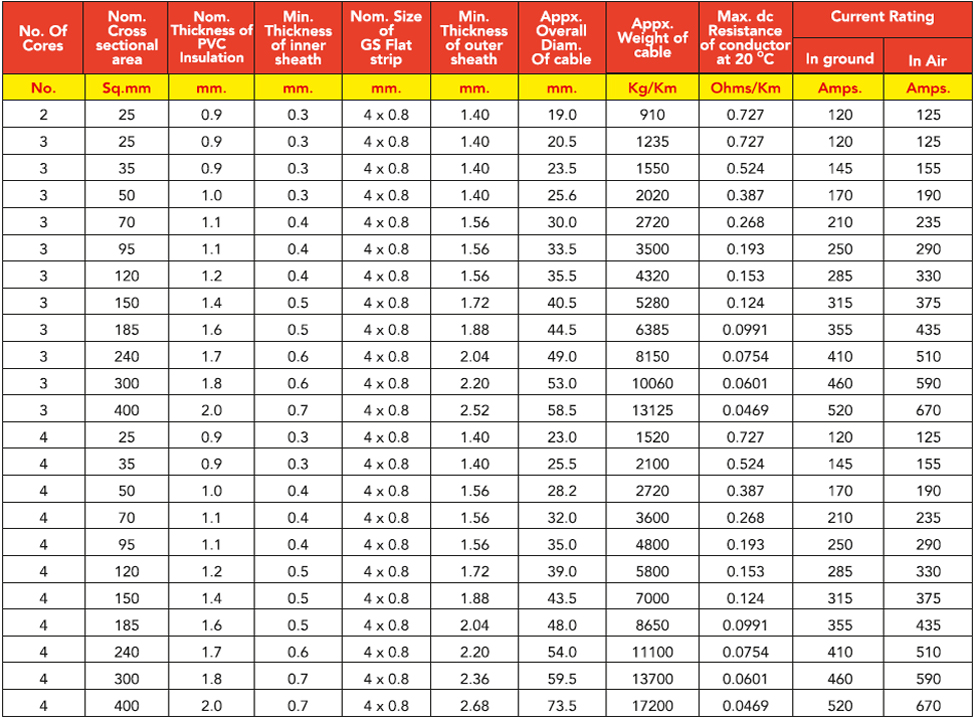

FINECAB 1.1 KV MULTI CORE ALUMINIUM CONDUCTOR PVC INSULATED
& SHEATHED ARMOURED CABLES AS PER IS: 1554 (Pt.-1)


FINECAB 1.1 KV MULTI CORE ALUMINIUM CONDUCTOR PVC INSULATED
& SHEATHED ARMOURED CABLES AS PER IS: 1554 (Pt.-1)

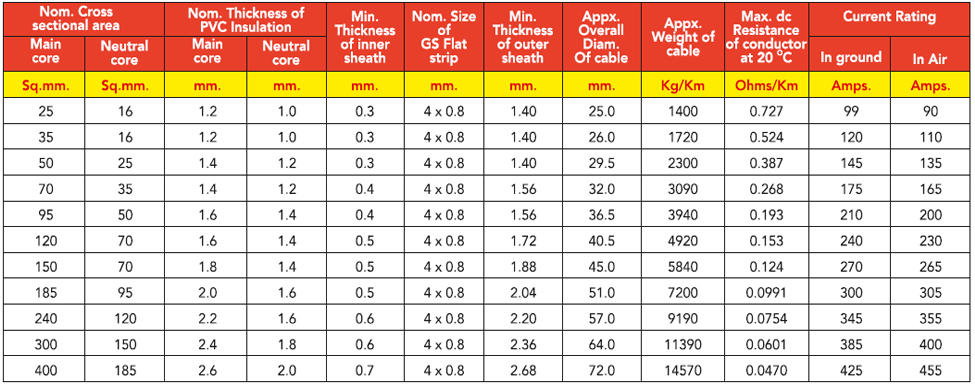

FINECAB 1.1 KV 3.5 CORE ALUMINIUM CONDUCTOR PVC INSULATED
& PVC SHEATHED ARMOURED CABLES AS PER IS: 1554 (Pt.-1)

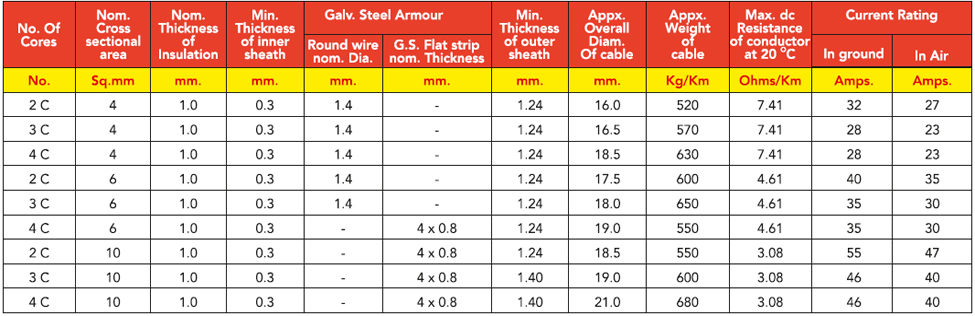

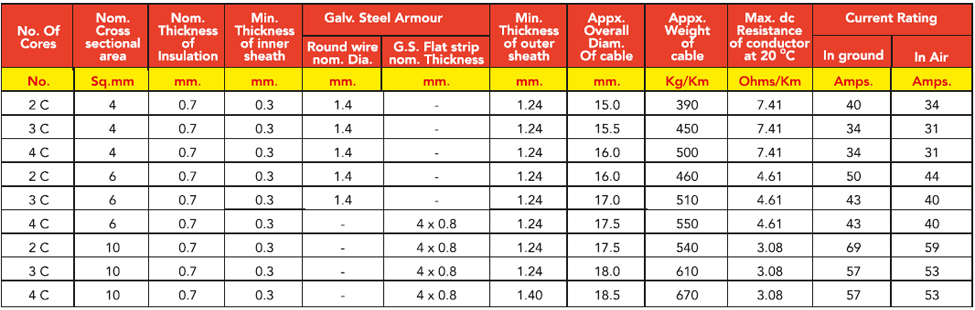

FINECAB 1.1 KV MULTI CORE COPPER CONDUCTOR PVC
INSULATED & SHEATHED ARMOURED CABLES AS PER IS: 1554 (Pt.- 1)


FINECAB 1.1 KV 3.5 CORE COPPER CONDUCTOR PVC INSULATED &
PVC SHEATHED ARMOURED CABLES CONFORMING TO IS: 1554 (Pt.- 1)

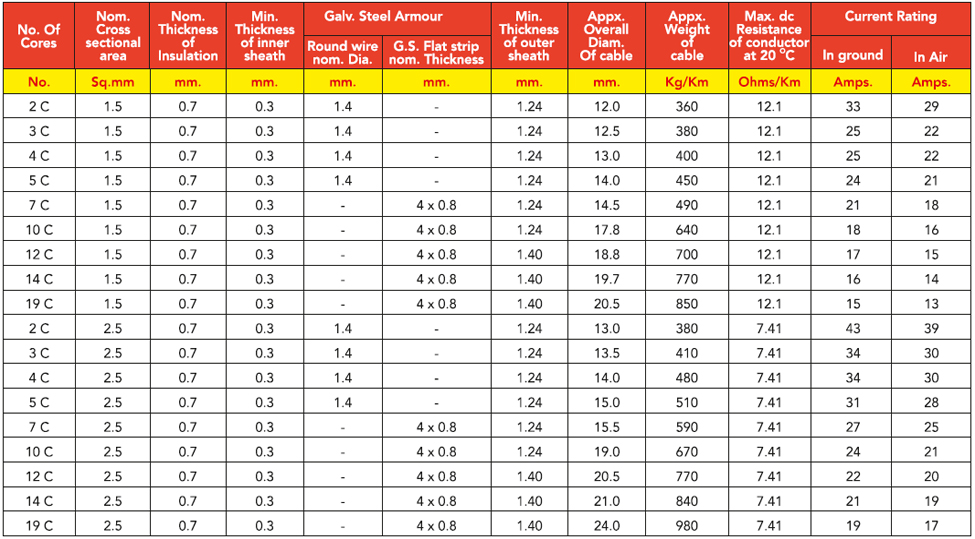

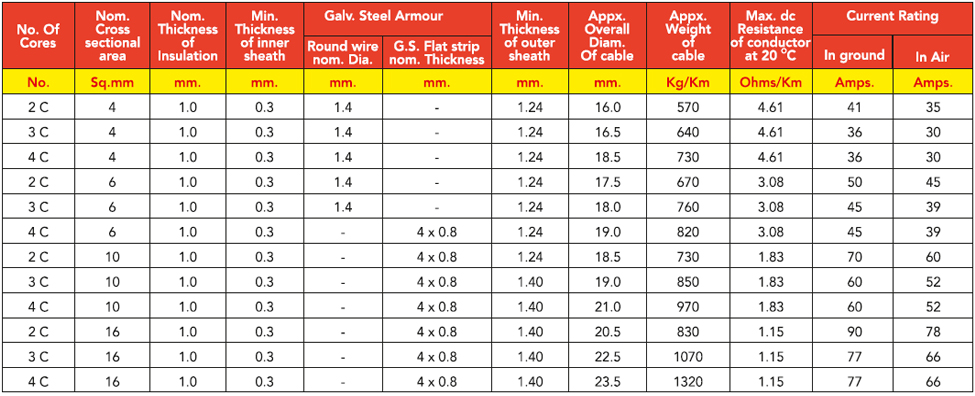

FINECAB 1.1 KV MULTI CORE COPPER CONDUCTOR PVC INSULATED &
SHEATHED ARMOURED CABLES AS PER IS: 1554 (Pt.-1)


Technical data for 1.1 KV Xlpe/Pvc Armoured cables as per IS:7098(Pt.1)

FINECAB 1.1 KV MULTI CORE ALUMINIUM CONDUCTOR XLPE INSULATED &
PVC SHEATHED ARMOURED CABLES AS PER IS: 7098 (Pt.1)


FINECAB 1.1 KV MULTI CORE ALUMINIUM CONDUCTOR XLPE INSULATED &
PVC SHEATHED ARMOURED CABLES AS PER IS: 7098 (Pt.1)

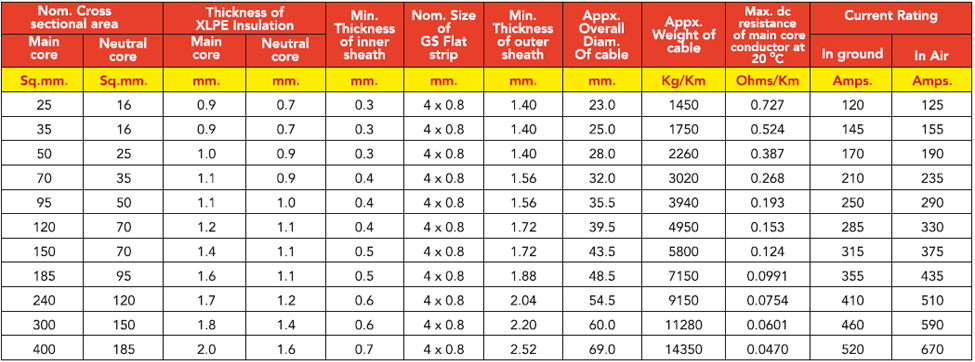

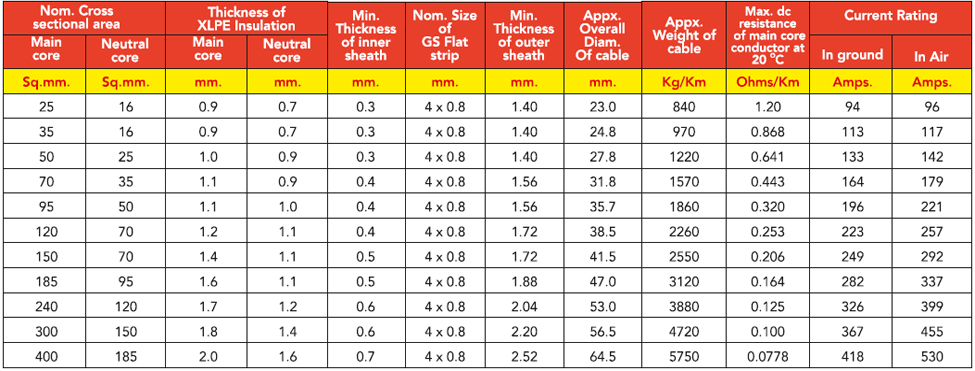

FINECAB 1.1 KV 3.5 CORE ALUMINIUM CONDUCTOR XLPE INSULATED &
PVC SHEATHED ARMOURED CABLES CONFORMING TO IS: 7098 (Pt.1)

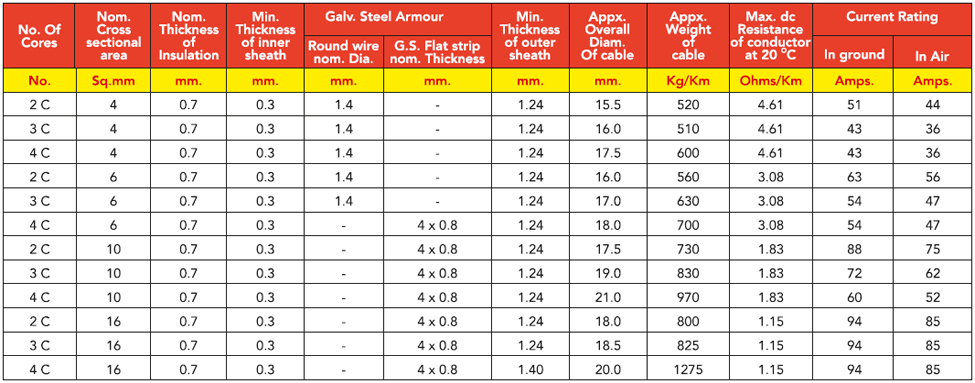

FINECAB 1.1 KV MULTI CORE COPPER CONDUCTOR XLPE INSULATED &
PVC SHEATHED ARMOURED CABLES AS PER IS: 7098 (Pt.1)

NOTE: All the cables of the above table manufactured with Stranded Copper Conductor FR-LSH PVC outer sheath.


FINECAB 1.1 KV MULTI CORE COPPER CONDUCTOR XLPE INSULATED &
PVC SHEATHED ARMOURED CABLES AS PER IS: 7098 (Pt.-1)

NOTE: All the cables of the above table manufactured with FR-LSH PVC outer sheath.


FINECAB 1.1 KV 3.5 CORE COPPER CONDUCTOR XLPE INSULATED &
PVC SHEATHED ARMOURED CABLES CONFORMING TO IS: 7098 (Pt.1)

NOTE: All the cables of the above table manufactured with Stranded Copper Conductor FR-LSH PVC outer sheath.


FINECAB 1.1 KV MULTI CORE COPPER CONDUCTOR XLPE INSULATED &
PVC SHEATHED ARMOURED CABLES AS PER IS: 7098 (Pt.1)

NOTE: All the cables of the above table manufactured with Stranded Copper Conductor FR-LSH PVC outer sheath.


Technical data for HT Xlpe armoured cables as per IS:7098(Pt.1)

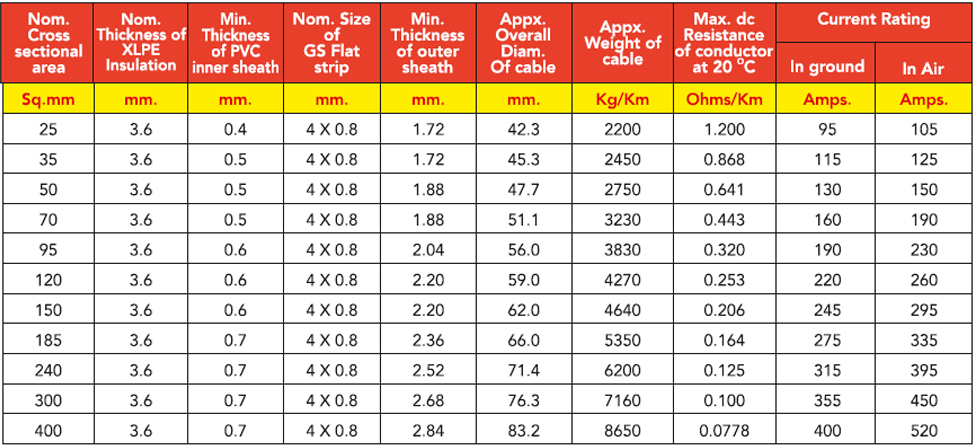

FINECAB HT 11 KV (E) 3 CORE ALUMINIUM CONDUCTOR XLPE
INSULATED ARMOURED CABLES AS PER IS: 7098(Pt.2)

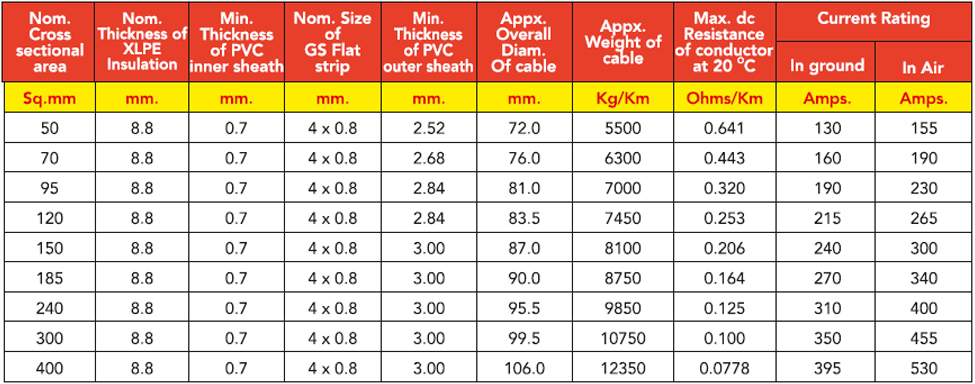

FINECAB HT 33 KV (E) 3 CORE ALUMINIUM CONDUCTOR XLPE
INSULATED ARMOURED CABLES AS PER IS: 7098(Pt.2)


Technical data for 1.1 KV Aerial bunched cables as per IS:14255

FINECAB 1.1 KV AERIAL BUNCHED CABLES - STRANDED & COMPACTED ALUMINIUM PHASE CONDUCTOR,
AND STRANDED BARE MESSENGER CONDUCTOR WITH ALUMINIUM ALLOY, PHASE CONDUCTOR IS INSULATED WITH XLPE COMPOUND , CONFORMING TO IS : 14255-1995


Current Rating Factors

The Current Ratings given in the tables are as per IS: 3961 under standard conditions of laying.

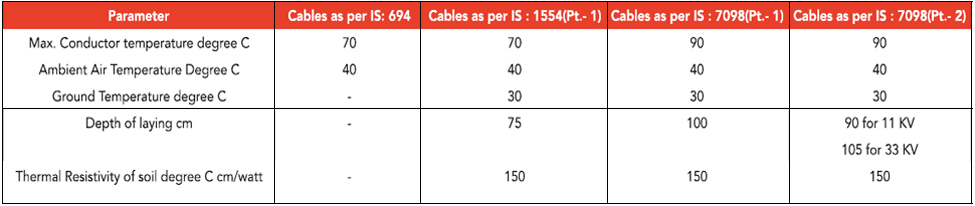

The standard conditions of laying for cables as per different standards are as follows.

The current ratings are for single circuit for single phase ac or three phase ac system as applicable. Appropriate derating factors as given in respective part of IS: 3961 should be applied for variation from standard conditions of laying. Group rating factors should be applied if a group of cables are installed. The cables can be continuously operated at rated currents only if they are suitably protected against excess currents arising out of fault conditions.
